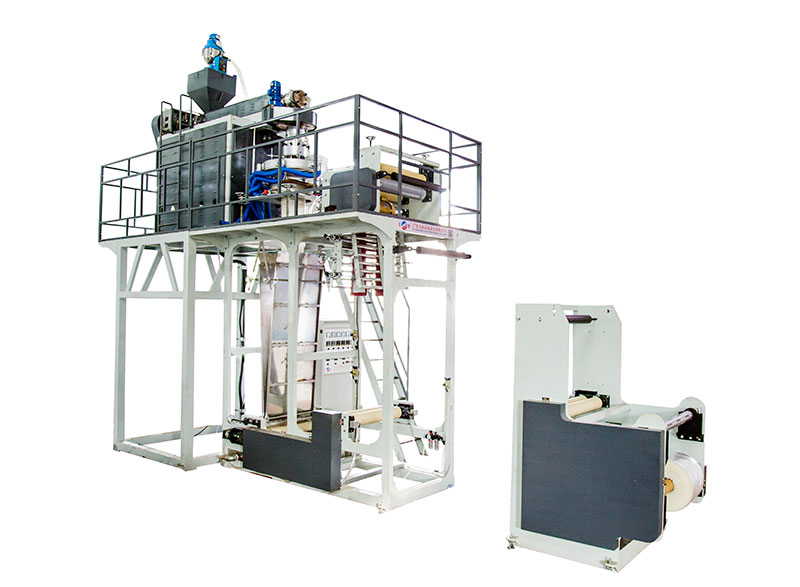

一.用途:
本機組適用于吹制PP/PE塑料薄膜,廣泛用于食品,服裝,紡織品,日用品等民用品和工業品的包裝.二.特點:
1.模頭能360度左右旋轉,可增強塑料薄膜的強度和均勻度.2.螺桿,料筒均采用雙合金鋼材料,經氮化處理和精密加工而成,硬度高,耐腐蝕性強,經久耐用.
3.模頭鍍硬絡,其結構為螺旋芯軸式,擠出的熔融料均勻,吹制的薄膜光潔度好；風冷裝置結構為迷宮型,出風量均勻,采用循環水冷卻。從而使吹制的薄膜達到很好的透明度。
4.卷取裝置采用雙工位中心收卷,采用力矩電機調節,收卷平整,換卷方便.
The first purpose:
This machine is suitable for blowing PP/PE plastic film, widely used in food, clothing, textiles,daily necessities and other supplies and industrial products packagingThe second. Characteristics:
1 die head can rotate 360 degrees, can enhance the strength and uniformity of plastic film2 screw, barrel are double alloy steel material, after nitriding and precision processing, high hardness, corrosion resistance, durable
3.The die hard chrome plating, screw mandrel type structure, melt extruding evenly, the blown plastic film has fine finishing; cooling equipment is a labyrinth, a uniform wind, the use of recycled water cooling. So as to make the film blowing up the best transparency.
4 coiling unit adopts double center winding adopts torque motor regulation, smooth rolling, roll changing easy.
三.主要技術參數
Main technical| 型號 TYPE |
YF-500型 | YF-700型 | YF-900型 | YF-1000型 | ||||
| 適用原料 Applicable materials |
HDPE／LDPE／LLDPE／PP |
|||||||
| 螺桿直徑 Screw diameter（mm） |
Ø50/Ø60/Ø50 | Ø55/Ø65/ Ø55 |
Ø60/Ø70/Ø60 | Ø70/Ø85/ Ø70 |
||||
| 螺桿長勁比 Screw length ratio |
1:30 | 1:30 | 1:30 | 1:30 | ||||
| 主電機功率 Main motor power（kw） |
5.5kw | 11kw | 15kw | 18.5kw | ||||
| 擠出量 extrusion（kg/h） |
30kg/h | 45kg/h | 60kg/h | 70kg/h | ||||
| 產品寬度 Product width（mm） |
300mm | 500mm | 700mm | 800mm | ||||
| 產品厚度 Product thickness（mm） |
0.02-0.15mm | 0.02-0.20mm | 0.02-0.20mm | 0.02-0.20mm | ||||
| 螺桿轉速 | 10-100r/min | |||||||
| 收卷方式 | 全自動中心/表面/間隙收卷 |
|||||||
| 外形尺寸 (長*寬*高) |
9.5×5×9m | 10×5.5×9.5m | 10×6×10.5m | 10.5×7×11m | ||||
由于不斷研究改進，我司保留改變設計之權利。
Due to continuous improvement, we reserve the right to change design.
Due to continuous improvement, we reserve the right to change design.
